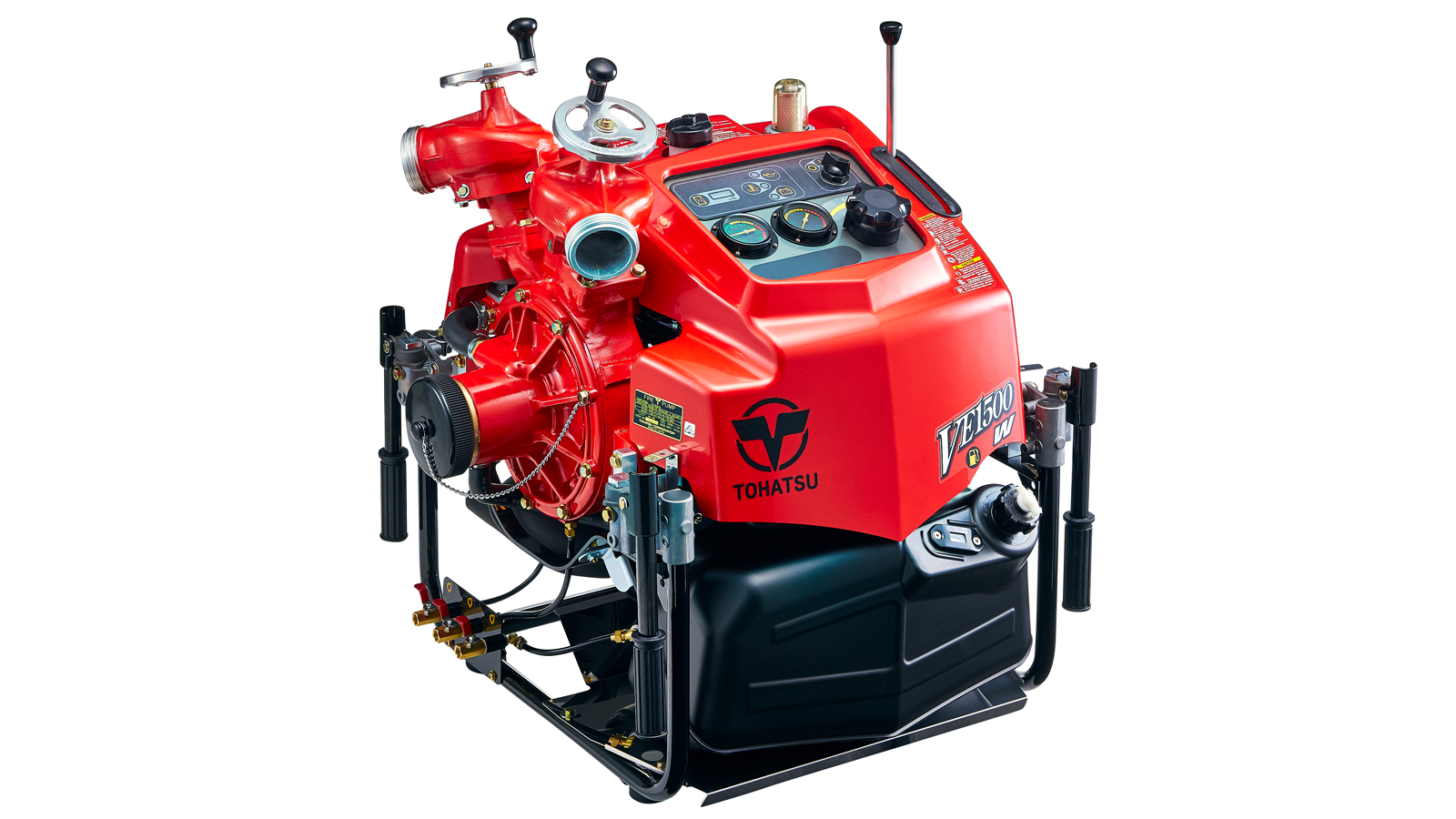

VE1500W

Best balance of performance and weight

Engine: 804mL Tohatsu 2-stroke, water-cooled gasoline engine
Authorized output: 44kW
Pump performance: 2050 liter / min. at 0.6MPa; 1800 liter / min. at 0.8MPa; 1500 liter / min. at 1.0MPa
Dry weight: 99kg

Description

2050 L/min @6 Bar
1800 L/min @8 Bar
1500 L/min @10 Bar

The lightest & the most compact model in its class.

The best suction performance in its class (9m / 30ft).

Easy & smooth start by battery-less EFI. (Electric Fuel Injection).

90 degree swinging twin outlets.

Specification		VE1500W
Engine	Type	2-stroke
	Number of Cylinder	2 Cylinder
	Cooling System	Suction Water Cooled
	Bore x Stroke	81 x 78 mm (3.19 x 3.07 inch)
	Piston displacement	804mL (49.0 cu in)
	Output	44kW
	Fuel Type	Unleaded Gasoline (RON 91 or Higher)
	Fuel Tank Capacity	24 Lit (6.34 US gal)
	Fuel Consumption	Approx. 22 L/hr (5.81 US gal/hr) (at 1.0 MPa 1500 L/min)
	Fuel System	Electronic Fuel Injection
	Oil Tank Capacity	1.6 Lit (1.7 US qt.)
	Starting	Eectric and Manual
Suction	Suction System	4 Blade Rotary-vane Vacuum Pump (Oilless-type)
Suction	Priming System	Manual
Pump	Pump Type	Single Suction, Single Stage, High Pressure Turbine Pump
	Suction Thread and Dia.	JIS 3-1/2″ (90mm)
	Suction Thread and Dia.	–
	Discharge Thread and Dia.	JIS 2-1/2″ (65mm)
	Discharge Thread and Dia.	–
	Discharge Number	Twin
	Discharge Valve	Flat Valve
Weight	Dry Weight	99 kg (218 lbs)
Weight	Wet Weight	124 kg (273 lbs)
Dimension(mm)	Overall Length x Width x Height	763 x 748 x 827 mm (30.04 x 29.45 x 32.56 inch)
Remote Control Panel *optional	Number of Panel (Maximum)	–
Remote Control Panel *optional	Length of cable for panel	–

NOTE　JIS: Japanese Industrial Standard Thread
